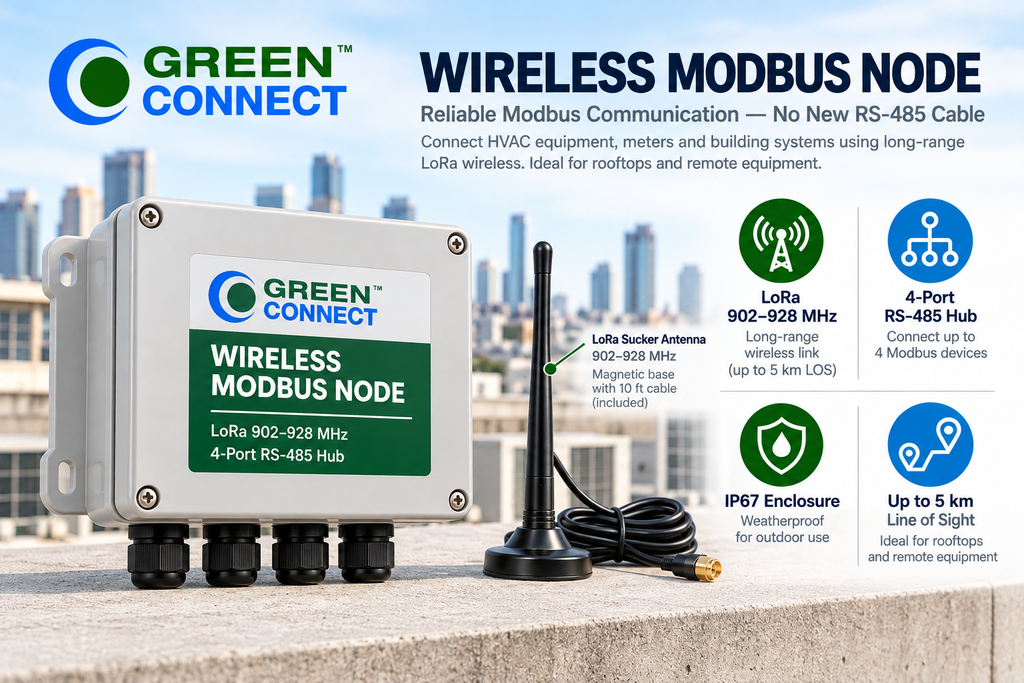

The GreenConnect Wireless Modbus Node replaces a hardwired RS-485 run with a long-range LoRa radio link. It installs at the equipment end, where pulling cable back to the controller is impractical: across floors, between buildings, through mechanical rooms, or to rooftop equipment.
The unit ships assembled and bench-tested in a sealed IP67 enclosure. Connect your Modbus RTU devices to the 4-port hub and plug the unit into a 120 V outlet. The Node communicates with a GreenConnect Wireless Modbus Gateway, which connects to the building network over Ethernet and presents the field devices as Modbus TCP.
What’s included
| Component | Description |
|---|---|
| LoRa radio | Industrial LoRa radio, Semtech SX1262 chipset |
| Antenna | External antenna |
| Modbus hub | 1-in, 4-out RS-485 Modbus RTU hub |
| Power supply | Internal, powers radio and hub |
| Surge suppressor | Protects internal electronics from line surges |
| Enclosure | IP67 rated |
| Power cord | 120 VAC plug, 3 ft |
Specifications
| Protocol | Modbus RTU over RS-485 |
| Wireless | LoRa, 902–928 MHz |
| Range | Up to 5 km line of sight |
| Baud rate | 1,200 to 115,200 bps |
| Modbus ports | 4 |
| Input power | 120 VAC, 60 Hz |
| Enclosure | IP67, 200 x 120 x 70 mm |
| Power cord | 3 ft |
Typical applications
- Connecting HVAC equipment, meters, and VRF gateways to a BMS without new cable runs
- Wireless submetering
- Linking rooftop or remote equipment to an indoor controller
Note: Requires a GreenConnect Wireless Modbus Gateway at the network end. One Gateway can serve multiple Nodes, provided every Modbus device on the network has a unique slave ID. Range depends on building construction and antenna placement.
Disclaimer: Product enclosure color may come in either white or black depending on inventory in stock.
