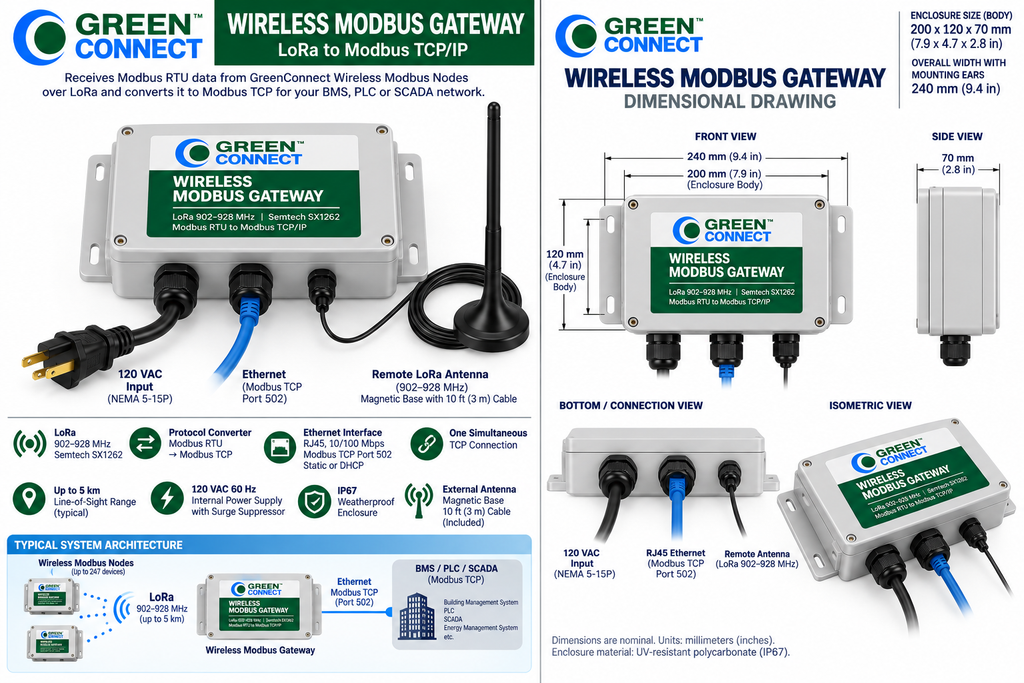

The GreenConnect Wireless Modbus Gateway connects remote Modbus RTU devices to a building network over a long-range LoRa radio link. It receives Modbus RTU traffic from GreenConnect Wireless Modbus Nodes and converts it to Modbus TCP, so a BMS, PLC, or SCADA system on the LAN can poll field devices by IP address.
The unit ships assembled and bench-tested in a sealed IP67 enclosure. Connect the RJ45 Ethernet port to the building network, plug the unit into a 120 V outlet, and assign it an IP address. One Gateway can serve multiple Nodes on the same channel, provided every Modbus device on the network has a unique slave ID.
What’s included
| Component | Description |
|---|---|
| LoRa radio | Industrial LoRa radio, Semtech SX1262 chipset |
| Antenna | External antenna |
| Protocol converter | Modbus RTU to Modbus TCP |
| Network port | RJ45 Ethernet |
| Power supply | Internal, powers radio and converter |
| Surge suppressor | Protects internal electronics from line surges |
| Enclosure | IP67 rated |
| Power cord | 120 VAC plug, 3 ft |
Specifications
| Network protocol | Modbus TCP, port 502 |
| Field protocol | Modbus RTU |
| Ethernet | RJ45, [10/100 Mbps] |
| IP addressing | [Static or DHCP] |
| Simultaneous TCP connections | 1 |
| Wireless | LoRa, 902–928 MHz |
| Range | Up to 5 km line of sight |
| Input power | 120 VAC, 60 Hz |
| Enclosure | IP67, 200 x 120 x 70 mm |
| Power cord | 3 ft |
Typical applications
- Bringing wireless Modbus RTU devices onto a BMS or SCADA network as Modbus TCP
- Wireless submetering with meters read over the building LAN
- Connecting rooftop, cellar, or remote-building equipment to a central controller
Note: Requires at least one GreenConnect Wireless Modbus Node at the equipment end. Range depends on building construction and antenna placement. Radio round-trip time is longer than a wired connection; set the Modbus TCP response timeout in your BMS to at least 2 seconds.
